VX 2015 065

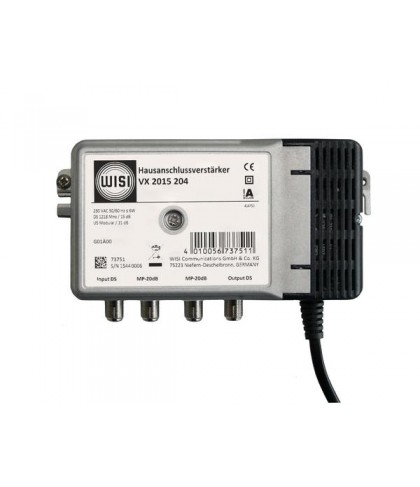

 The VX 2015 is a location feeding in-house amplifier with a frequency range up to 1.2 GHz. It has an active output and a measuring socket on the input and output. Diplex filter and return path amplifier are grouped together on a module (VX201-xxx) and available in the versions 65 MHz, 85 MHz and 204 MHz. All settings are done without interruption with Q-step switch or jumper. In addition, a high pass filter XE-xx can be plugged in the return path to influence the ingress influences.

Features
High output level up to 1.2 GHz, with low power consumption
Active single output
Measuring socket for input and output
All settings (gain, slope etc.) by rotary switch and Jumper
Diplex filters, return amplifier pluggable on one module
Optional – receiver according to EN 60728-14 for ICS-settings
Optional – pluggable high pass filter at the return path channel
Low power input <6 W
